16x22.25x4 Vs 16x25x4 Air Filters And Why The Quarter Inch Matters

16x22.25x4 Vs 16x25x4 Air Filters: Size Difference

Most 16x22.25x4 vs 16x25x4 guides just repeat the size chart. This one starts with what a mismatched filter actually leaves open. Filterbuy, which manufactures exact-size filters to the labeled dimension instead of rounding to a nearby standard, reports that a gap this small is enough to let air bypass the filter and strain the system in real installations. That quarter inch is the difference. Here's how to tell which size your equipment actually needs.

TL;DR

A 16x22.25x4 air filter and a 16x25x4 air filter are not interchangeable, even though the numbers look close. The 16x22.25x4 is an exact-size filter built to match a specific duct or cabinet opening, while the 16x25x4 is a common nominal size manufactured slightly smaller than its label. Using the wrong one creates a gap around the frame that lets unfiltered air bypass the media entirely. Measuring your actual opening before you order is the only reliable way to tell which one your system needs.

Quick Answer

The difference between a 16x22.25x4 and a 16x25x4 air filter comes down to fit, not filtration quality. The 16x22.25x4 is sized to match systems with a narrower duct opening, while the 16x25x4 fits the far more common 25-inch-wide slot. A quarter inch sounds trivial, but in a filter frame it decides whether the filter seals against the cabinet or leaves a gap air can slip through.

Key Takeaways

A 16x22.25x4 filter is an exact-size filter built for HVAC cabinets with a 22.25-inch opening, not a rounded or approximate fit.
A 16x25x4 filter is a nominal size, meaning its actual dimensions run slightly smaller than 16x25 to fit standard slots with a small margin.
Even a quarter-inch gap around a filter's frame lets air bypass the media, which reduces filtration and can strain the HVAC blower.
The two sizes are not interchangeable. Installing a 16x25x4 in a cabinet built for 16x22.25x4 (or the reverse) usually leaves either a gap or a filter that won't seat properly.
Manufacturers that produce true exact sizes, like the 16x22.25x4 replacement air filters from Filterbuy, build to the stated dimension rather than rounding to the nearest common size.

What Is A 16x22.25x4 Air Filter?

A 16x22.25x4 air filter is an exact-size filter. The 22.25-inch width is a specific measurement, not a rounded stand-in for a nearby common size. HVAC systems that call for this size typically have a duct or filter cabinet cut to that exact opening, often on furnaces or air handlers where the manufacturer built the housing to a non-standard dimension.

Because the dimension is exact, a properly made 16x22.25x4 filter should sit flush in its housing with no visible gap on any edge. There is no rounding cushion built in, which means the filter has to be manufactured to that precise size to work correctly.

One detail that trips people up. Filterbuy's 16x22.25x4 listing shows an actual depth of 3.63 inches, not a full 4. That is standard across 4-inch filters generally, not a defect or a sizing error, since depth has more built-in tolerance than the width and height that create the seal against the cabinet.

This is the size question we get asked about most often on this site, and it usually starts the same way. Someone measures their old filter, sees "22x25" printed on the frame, and assumes that's the real number. Filterbuy's manufacturing side reports the same pattern from the other end, seeing this mix-up most often on older furnaces and air handlers where the cabinet was cut to a regional or legacy duct spec rather than a standard rounded size.

It is not the only exact size in common use. The 16x21.5x1 furnace filter follows the same fit-first logic, which is why HVAC professionals reach for it specifically rather than substituting a nearby standard size.

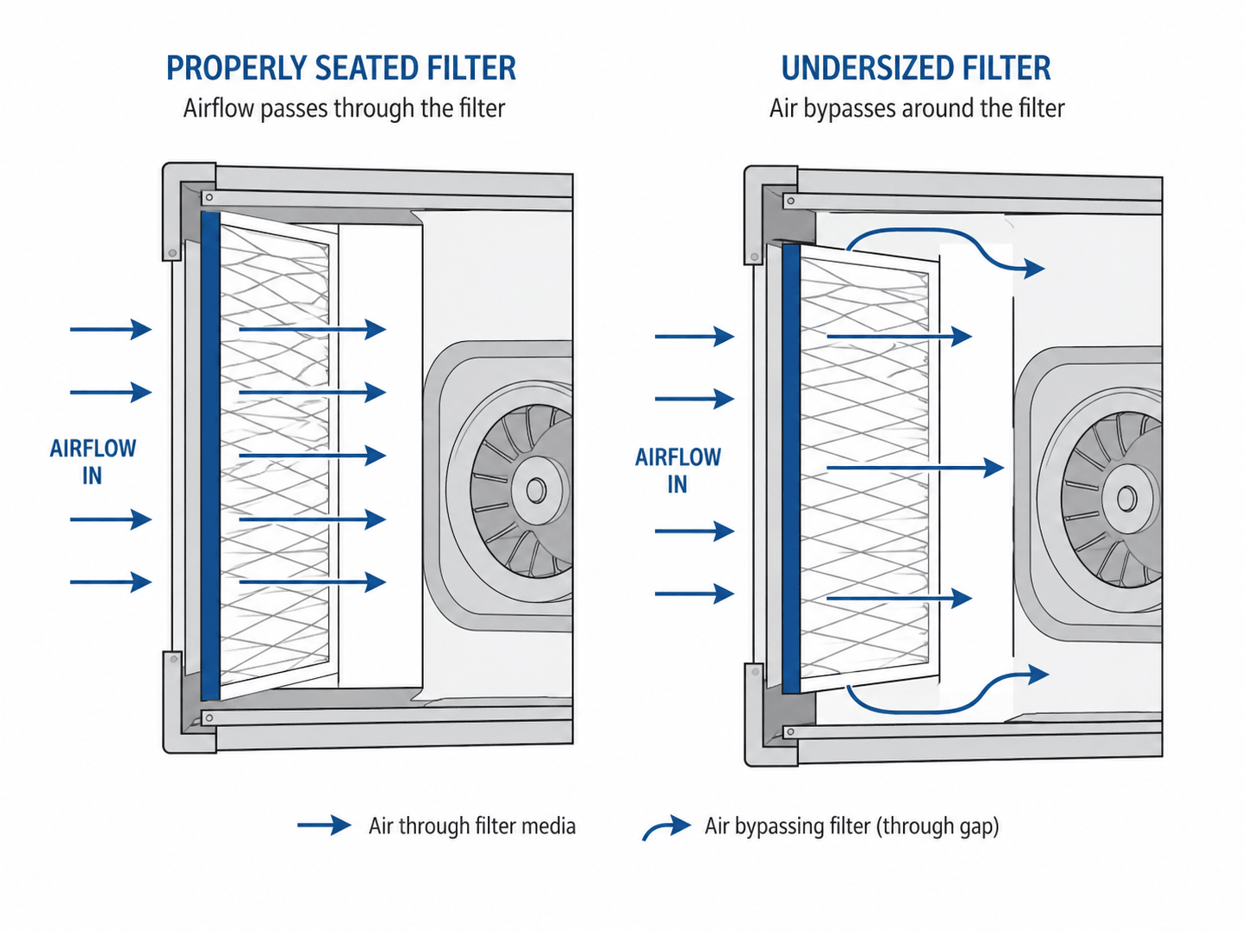

Why The Quarter Inch Actually Matters

A quarter inch sounds small next to a filter that's already 16 inches on one side. That instinct is wrong. Inside a filter track, a quarter inch changes the entire fit.

Seal integrity. HVAC filters work by forcing all return air through the filter media. Any gap between the filter frame and the cabinet becomes a path of least resistance, and air will take it. The EPA's guidance on furnace and HVAC filters specifically notes a filter needs to fit snugly so air does not leak around it. A quarter-inch gap on even one edge can let a meaningful share of return air skip filtration completely.
Airflow behavior. A filter that's too small for its slot won't seat evenly, which can let it shift, tilt, or vibrate loose over time. A filter that's too large won't insert cleanly and may bend or crimp at the edges, restricting airflow and stressing the blower motor. ENERGY STAR's heating and cooling efficiency guidance confirms a poorly fitted or dirty filter slows airflow and forces the system to work harder.
Filtration performance. MERV ratings are tested assuming all air passes through the media. A bypassed filter, regardless of its MERV rating, is only filtering the air that happens to go through it, not all the air moving through the system.

In practice, the quarter inch is the difference between a filter that does its job and one that quietly lets dust, pet dander, and other particles bypass filtration every time the system runs.

16x22.25x4 Vs 16x25x4: Side-By-Side

Attribute	16x22.25x4	16x25x4	Why It Matters
Size Type	Exact size	Nominal size	Exact sizes have no rounding cushion built in
Labeled Width	22.25 inches	25 inches	Nearly a 3-inch difference, not a rounding gap
Typical Actual Width	Matches label closely	Slightly under 25 inches	Nominal filters are built smaller than the label on purpose
Common Use	Systems with a narrower, specific cabinet opening	Standard residential furnaces and air handlers	Determines which one your equipment was built for
Fit Risk If Swapped	Gap or poor seal if replaced with 16x25x4	May not fit a cabinet sized for 16x22.25x4	Either swap risks air bypass around the frame

How To Tell Which Size Your System Needs

Measure your current filter or the cabinet opening directly, not just the frame printed size, since printed sizes are sometimes rounded even on the old filter itself.
Check for a quarter-inch difference specifically. If your existing filter measures close to 22.25 inches on one side rather than a clean 25, your system likely needs the exact size, not the nominal one.
Look at your HVAC manual or furnace nameplate, which sometimes lists the filter slot dimension directly.
When in doubt, order the exact size, since an exact-size filter built to the correct dimension will always fit better than forcing a nominal size into a non-standard opening.

The nameplate check is easy to forget once the manual is long gone, but it's the fastest way to settle this without a tape measure, so it's worth five minutes of digging before you order anything.

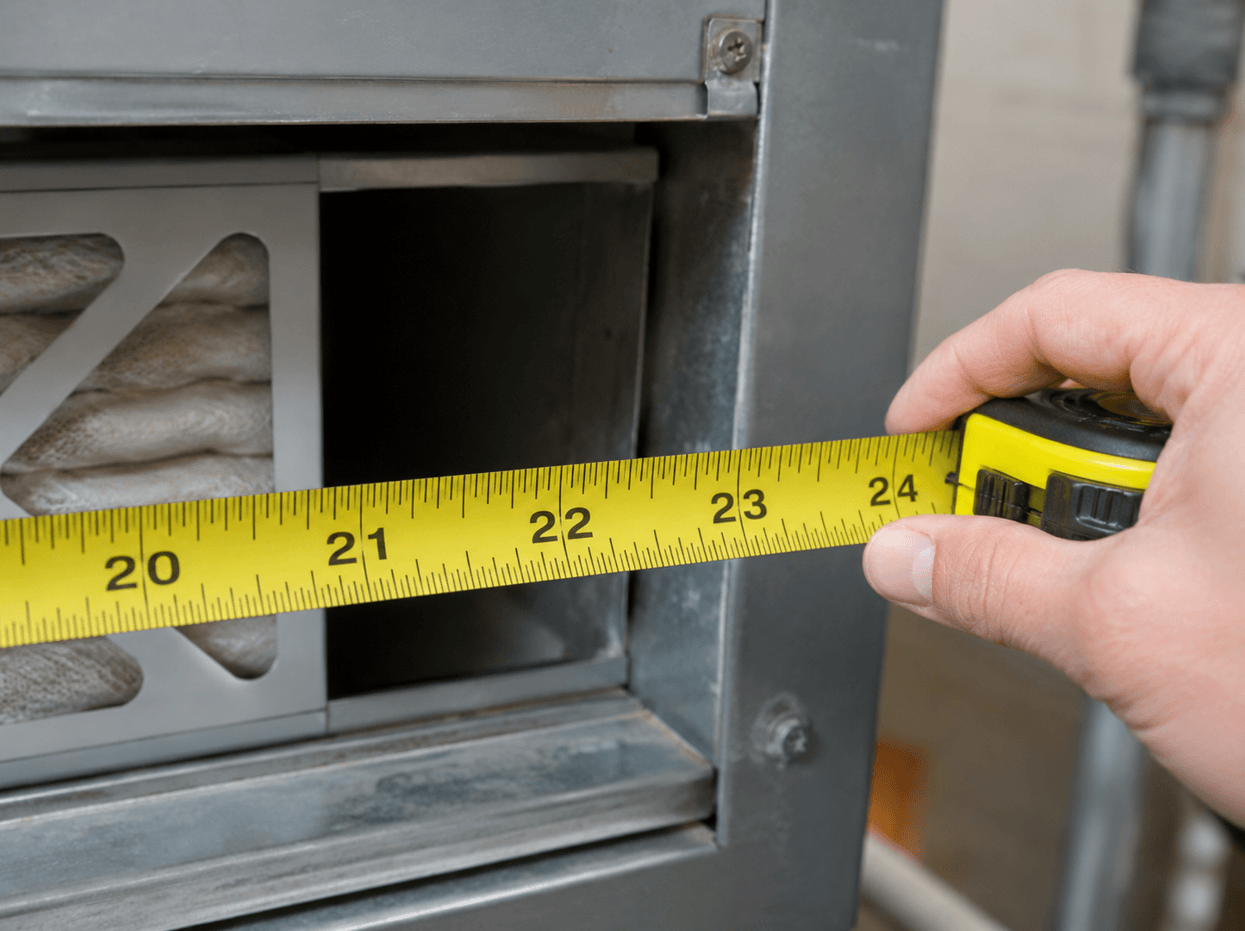

How To Measure Your Filter Slot Without Guessing

Most sizing guides stop at "measure it," which is exactly where the mistake happens. A few specifics make the difference between a measurement you can trust and one that sends you back to the return line.

Use a rigid tape measure, not a fabric one. A soft tape can sag across a 22-plus-inch opening and throw the reading off by more than the quarter inch you're trying to catch.
Measure width and height twice each, once near one edge and once near the other. Older cabinets are not always perfectly square, and a slight taper changes which size actually fits.
Record the smaller of the two readings for each dimension. A filter that runs a touch small still seats better than one forced to bend or crimp at the edges.
Treat depth as the least critical number. A little variation from the labeled 4 inches is normal manufacturing tolerance, not a sign you measured wrong.

What To Do If You Already Installed The Wrong Size

Check for daylight. With the system off, shine a flashlight around the filter frame from inside the cabinet. Light leaking around any edge confirms bypass without needing special tools.
Do not rely on tape as a permanent fix. Foam weatherstripping tape around the frame edge can buy time while the correct size ships, but it traps moisture against the frame and is not a substitute for the right dimension.
Order the exact size once, not the closest size twice. Buying another nominal filter to "try again" usually just repeats the same mismatch in a slightly different spot.

“The number printed on your old filter is rarely the number that matters. In every mix-up we've walked a homeowner through, the fix was the same. Measure the actual opening, not the label, and the right MERV rating gets a lot easier to pick after that.”

-Brad Alcaide

Trusted Resources For Choosing And Maintaining The Right 16x22.25x4 Air Filter

These seven sources cover the fit, filtration, health, and seasonal factors that go into choosing and maintaining a 16x22.25x4 air filter.

Learn What A MERV Rating Actually Guarantees

The EPA publishes the official MERV rating scale, stating the exact particle-capture percentage tied to each rating so a homeowner can see precisely what a MERV 8 versus a MERV 13 filter blocks before choosing a rating for a 16x22.25x4 replacement.

See How Filter Fit Affects Your Heating And Cooling Bill

The American Council for an Energy-Efficient Economy ties HVAC ductwork and airflow directly to system efficiency, showing why a filter that seals correctly in its slot protects both comfort and the utility bill.

Identify The Asthma Triggers A Sealed Filter Helps Block

The CDC's asthma trigger guidance lists dust mites, pet dander, mold, and outdoor pollution as common triggers, the same particles a properly fitted 16x22.25x4 filter is built to keep out of circulation.

Get Low-Cost Steps To Improve Indoor Air Today

The American Lung Association's low-cost indoor air quality tips list ten inexpensive steps and specifically recommend a MERV-13-rated furnace filter as one of them.

Control The Indoor Allergens A Filter Can't Reach Alone

AAFA's guide to controlling indoor allergens explains that many allergens settle on surfaces rather than staying airborne, which is why a well-fitted HVAC filter works alongside cleaning and humidity control rather than replacing them.

Prepare Your HVAC Filter Before Wildfire Smoke Arrives

AirNow.gov's wildfire readiness guidance advises stocking a MERV-13-or-higher HVAC filter before smoke season starts, since supplies can run short once smoke actually reaches an area.

Understand The Research Behind Indoor Air And Respiratory Health

The American Academy of Allergy, Asthma & Immunology's cleaning tips for allergy and asthma sufferers specifically call out replacing small-particle HVAC filters monthly, giving the medical rationale behind prioritizing filtration in the first place.

Supporting Statistics On Indoor Air Quality And Filter Performance

These three data points back up the claims made above in scannable form.

See Why Indoor Air Quality Depends On A Sealed Filter

The stat: The Washington State Department of Health reports indoor air can be two to five times more polluted than outdoor air.
Why it matters: That's the air an unsealed or bypassed filter fails to clean.

See How Much Airflow Problems Can Cost You

The stat: ENERGY STAR's HVAC maintenance checklist states airflow problems can cut a system's efficiency by up to 15 percent.
Why it matters: A poorly fitted filter is a common cause of an airflow problem.

See How Many Households Depend On A Working Filter

The stat: The U.S. Census Bureau's household air conditioning research shows more than nine out of ten U.S. households have air conditioning.
Why it matters: Most homes depend on a properly fitted filter to keep that system running efficiently.

Final Thoughts And Opinion

A 16x22.25x4 and a 16x25x4 are not the same filter, wearing two different labels.

16x22.25x4 is an exact size, built to the labeled dimension.
16x25x4 is a nominal size, rounded to fit a standard slot.
Swap one for the other and a gap opens that lets air bypass the filter entirely.

Our take, after years of covering HVAC tune-ups on this site:

Most sizing mistakes do not come from a bad filter. They come from trusting the number printed on the old filter instead of measuring the actual opening.
A great MERV rating cannot fix a filter that does not seal. Fit comes first.
Measure the opening. Match the exact size if your system calls for one. Everything else, MERV rating included, gets easier once fit is settled.

Frequently Asked Questions

Q: Can I Use A 16x25x4 Filter Instead Of A 16x22.25x4?

Not reliably. A 16x25x4 is nearly 3 inches wider than a 16x22.25x4, which is far more than the small rounding margin built into nominal sizing. It will not fit a cabinet built for the exact 22.25-inch opening.

Q: Is A Quarter-Inch Gap Really Enough To Cause Air Bypass?

Yes. HVAC filter tracks are designed for a tight seal, and even a small consistent gap along one edge gives air a lower-resistance path than pushing through the filter media, so a meaningful share of return air can bypass filtration. In practice, it's easy to miss until dust starts building up faster than it used to.

Q: How Do I Know If My Furnace Uses An Exact Size Or A Nominal Size Filter?

Measure the actual filter slot or your current filter's true dimensions rather than relying on the printed size. If the measurement lands on an unusual number like 22.25 inches rather than a round number like 25, your system likely requires an exact size.

Q: Does A Higher MERV Rating Make Up For A Poorly Fitted Filter?

No. MERV ratings only describe filtration efficiency for air that passes through the media. A filter that doesn't seal properly in its frame will still allow unfiltered air to bypass, regardless of MERV rating. For guidance on picking the rating itself once fit is confirmed, see finding the optimal MERV rating for allergy relief.

Q: Where Can I Find A True Exact-Size 16x22.25x4 Filter?

Exact sizes are less commonly stocked than standard nominal sizes, so they're usually sourced from manufacturers that build to the specific dimension rather than rounding to the nearest common size.

Ready To Get Your 16x22.25x4 Or 16x25x4 Sizing Right?

Whether your system calls for a 16x22.25x4 or a 16x25x4, the quarter inch only matters if you check it before you buy. Measure your filter slot today, then order the exact match your HVAC system actually needs.

Glossary

Exact-Size Air Filter. A filter manufactured to a precise stated dimension, with no rounding margin, intended for HVAC cabinets or ducts built to a specific non-standard opening such as 16x22.25x4.
Nominal Air Filter Size. A labeled filter size that is rounded up from the filter's true dimensions, allowing a small clearance so the filter slides into a standard-width slot. Most common residential sizes, including 16x25x4, are nominal.
Air Bypass. Airflow that moves around a filter's edges instead of through its media, typically caused by a gap between the filter frame and the cabinet. Bypassed air is not filtered regardless of the filter's MERV rating.
MERV Rating. Minimum Efficiency Reporting Value, a 1-16 scale that measures how effectively a filter captures airborne particles of different sizes. A higher MERV number indicates finer particle capture, but only for air that actually passes through the media.
Filterbuy. A U.S.-based manufacturer of pleated air filters, including exact-size options such as the 16x22.25x4, built to match the labeled dimension for HVAC systems that require a precise fit.
